S2GF

The S2GF is SURFACE MOUNT SILICON RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	S2GF
Manufacturer	Sunmate
File Size	1.17 MB
Description	SURFACE MOUNT SILICON RECTIFIER DIODES
Datasheet	S2GF-Sunmate.pdf

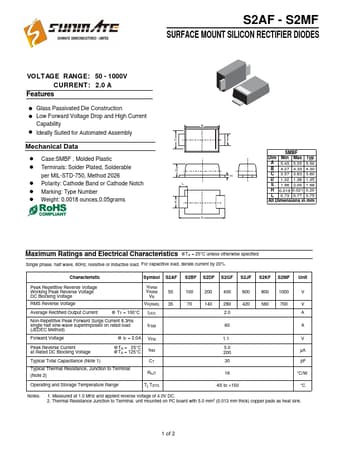

Additional preview pages of the S2GF datasheet.

! Glass Passivated Die Construction ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automated Assembly Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.0018 ounces,0.05grams B CE D L E A H SMBF Dim Min Max Typ A 5.45 5.55 5.50 B 4.27 4.33 4.30 C 3.57 3.63 3.60 D 1.32 1.38 1.35 E 1.96 2.00 1.98 H 0.019 0.021 0.20 L 0.73 0.77.
