S5B SURFACE MOUNT RECTIFIER DIODES

S5B Description

S5A - S5M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A .

S5B Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability         C la s s ification Ra tin g 94 V -O

📥 Download Datasheet

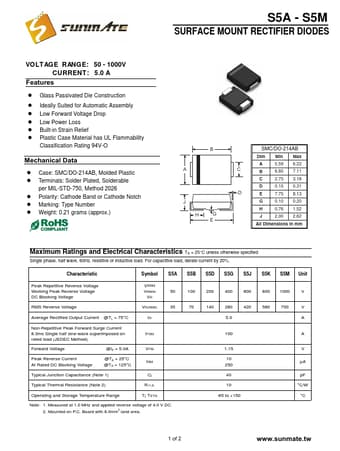

Preview of S5B PDF
datasheet Preview Page 2

Datasheet Details

Part number
S5B
Manufacturer
Sunmate
File Size
294.67 KB
Datasheet
S5B-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
