S5MBF SURFACE MOUNT RECTIFIER DIODES

Sunmate

Description

S5ABF - S5MBF SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A .

📥 Download Datasheet

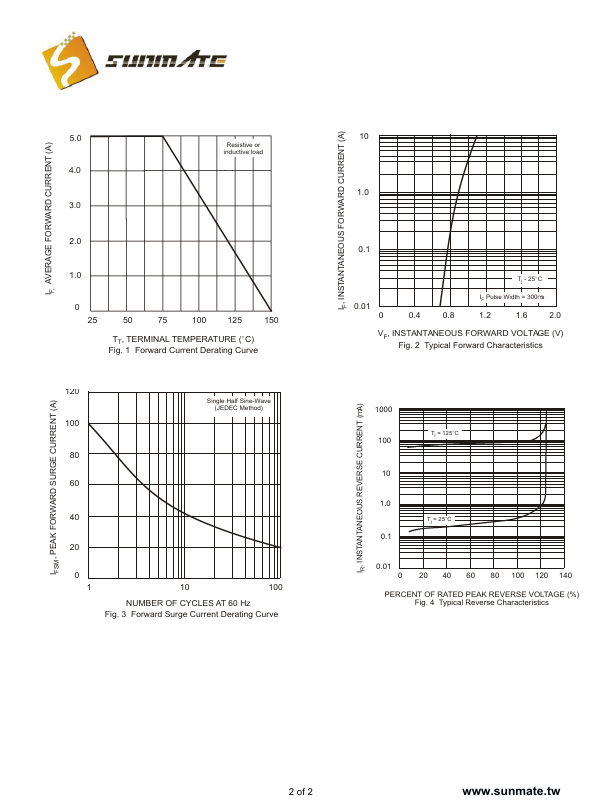

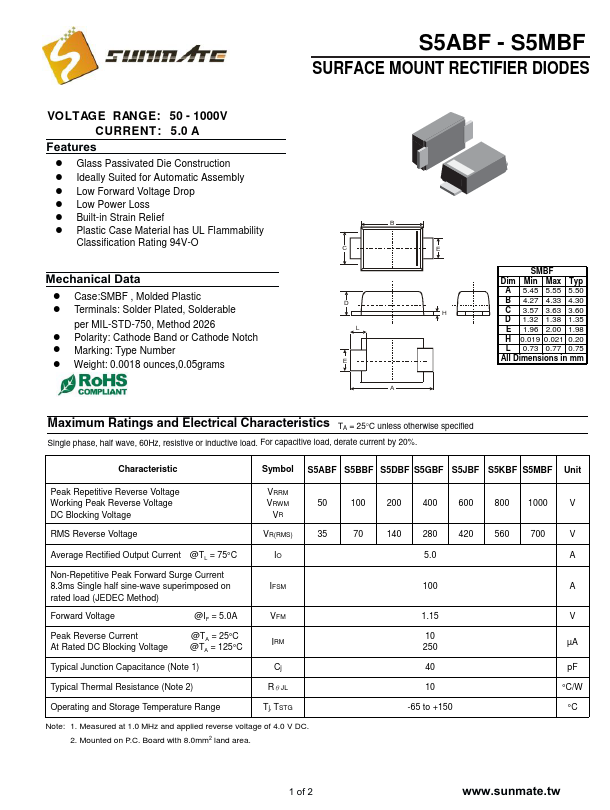

S5MBF Datasheet Preview — Preview of S5MBF PDF

Datasheet Specifications

Part number: S5MBF
Manufacturer: Sunmate
File Size: 102.21 KB
Datasheet: S5MBF-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief B ! Plastic Case Material has UL Flammability Classification Rating 94V-O C E
