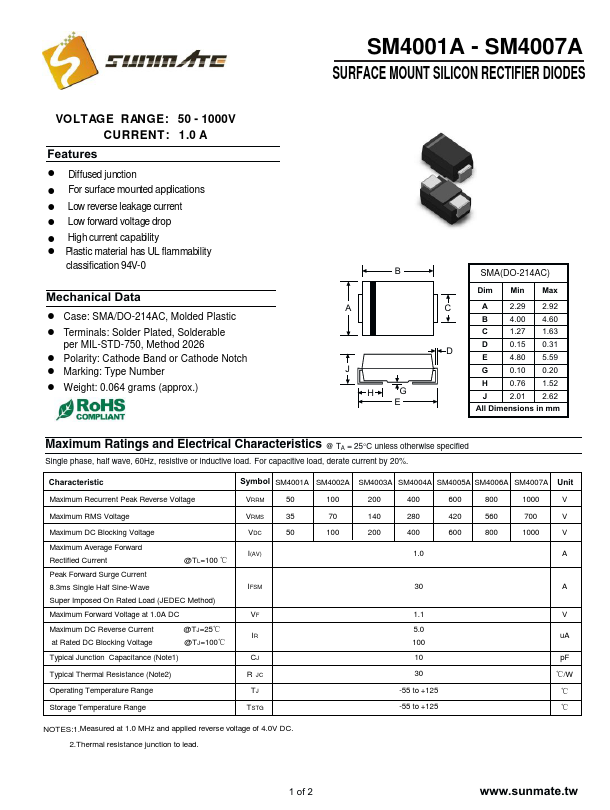

SM4005A, SM4001A - SURFACE MOUNT SILICON RECTIFIER DIODES

SM4005A Description

SM4001A - SM4007A SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

SM4005A Applications

* ! Low reverse leakage current ! Low forward voltage drop ! High current capability ! Plastic material has UL flammability classification 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM4005A, SM4001A. Please refer to the document for exact specifications by model.

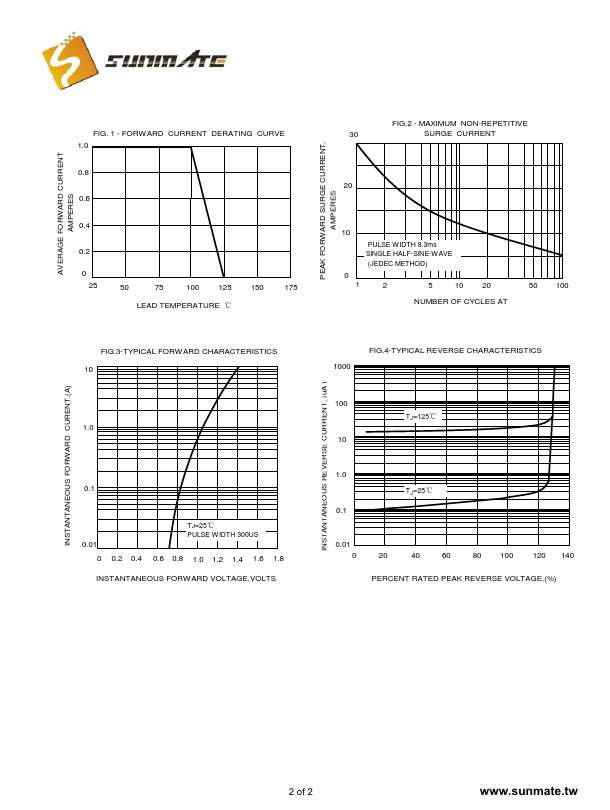

datasheet Preview Page 2

Datasheet Details

Part number
SM4005A, SM4001A
Manufacturer
Sunmate
File Size
133.43 KB
Datasheet
SM4001A-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SM4005A, SM4001A.
Please refer to the document for exact specifications by model.
