Datasheet Details
Part number:
SM4005FLCR-C, SM4001FLCR-C
Manufacturer:
SeCoS
File Size:
325.28 KB
Description:
1.0 amp surface mount silicon rectifiers.
Note:
This datasheet PDF includes multiple part numbers: SM4005FLCR-C, SM4001FLCR-C.
Please refer to the document for exact specifications by model.

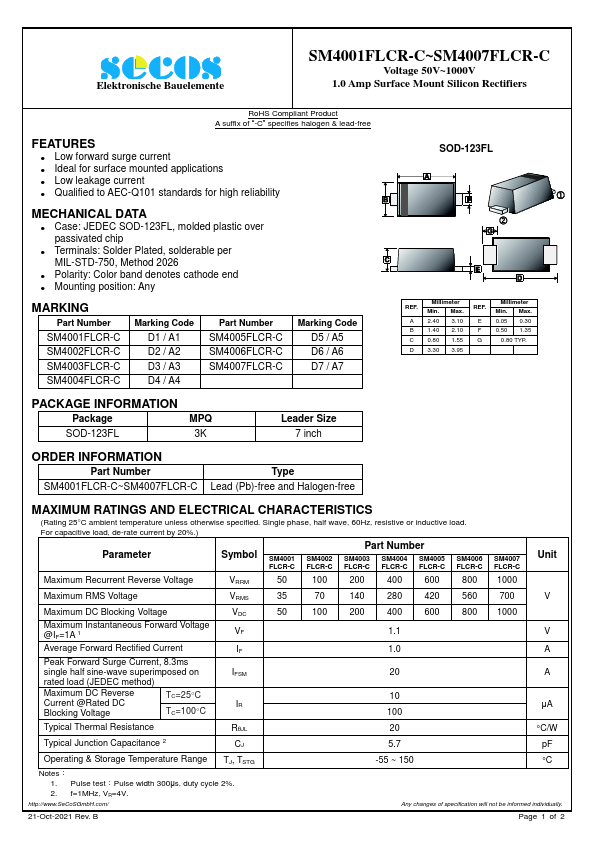

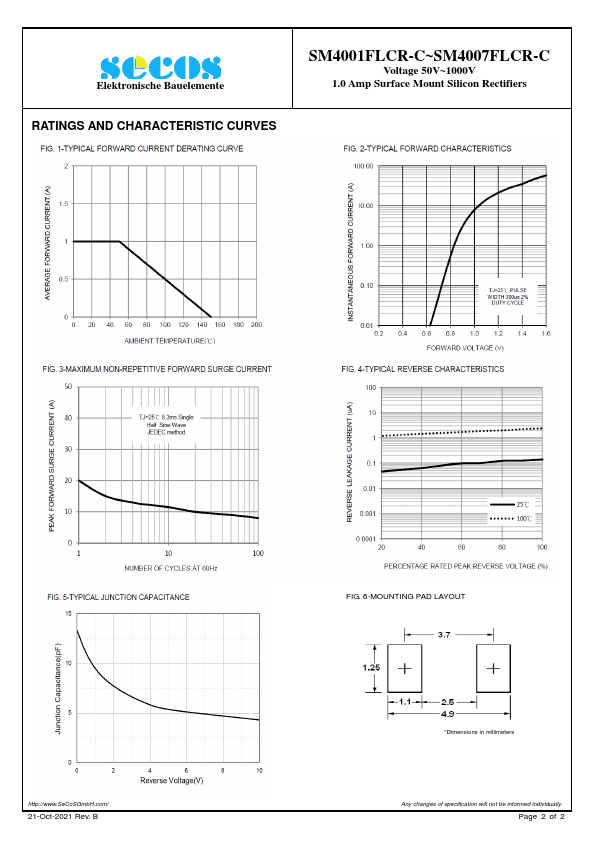

SM4005FLCR-C, SM4001FLCR-C, 1.0 Amp Surface Mount Silicon Rectifiers
SM4005FLCR-C Features
* Low forward surge current
* Ideal for surface mounted applications
* Low leakage current
* Qualified to AEC-Q101 standards for high reliability MECHANICAL DATA
* Case: JEDEC SOD-123FL, molded plastic over passivated chip
* Terminals: Solder Plated, solderable per MIL-STD-7
