SM4007FL, SM4001FL - SURFACE MOUNT RECTIFIER DIODES

SM4007FL Description

SM4001FL - SM4007FL SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

SM4007FL Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip !

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM4007FL, SM4001FL. Please refer to the document for exact specifications by model.

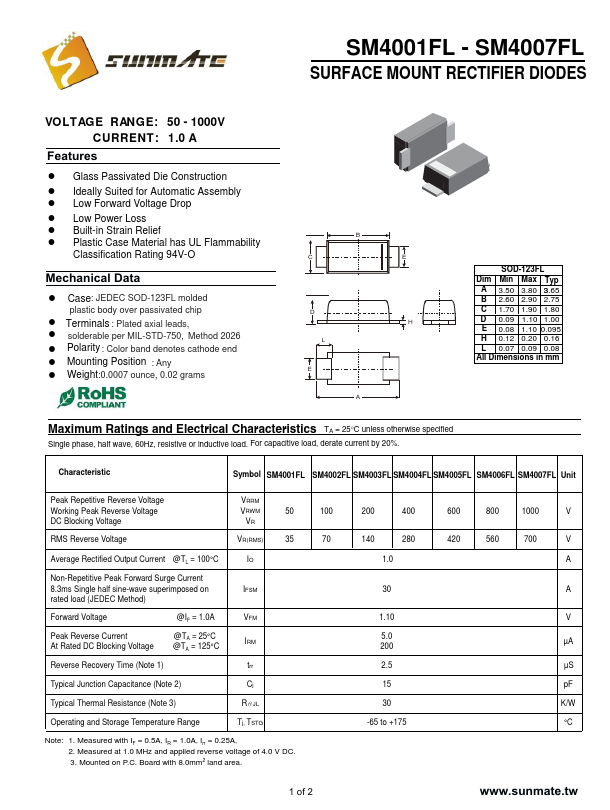

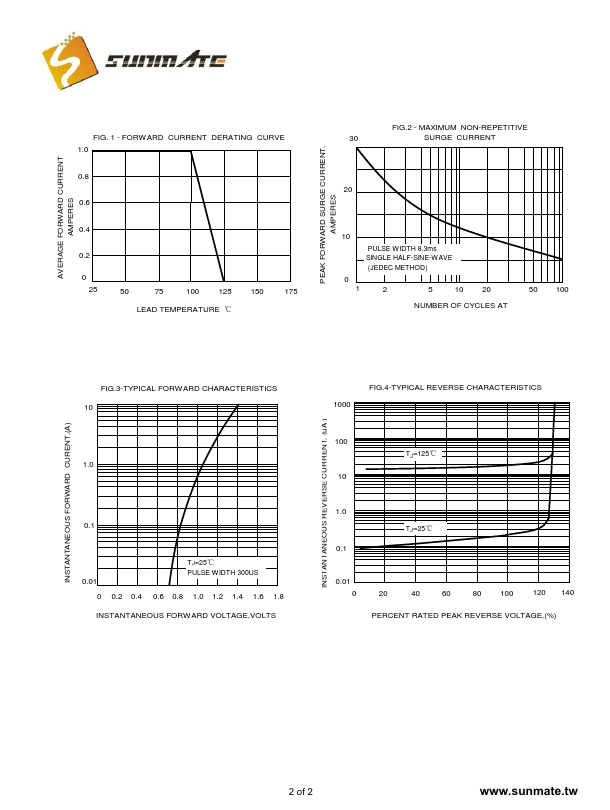

datasheet Preview Page 2

Datasheet Details

Part number
SM4007FL, SM4001FL
Manufacturer
Sunmate
File Size
146.13 KB
Datasheet
SM4001FL-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SM4007FL, SM4001FL.
Please refer to the document for exact specifications by model.
