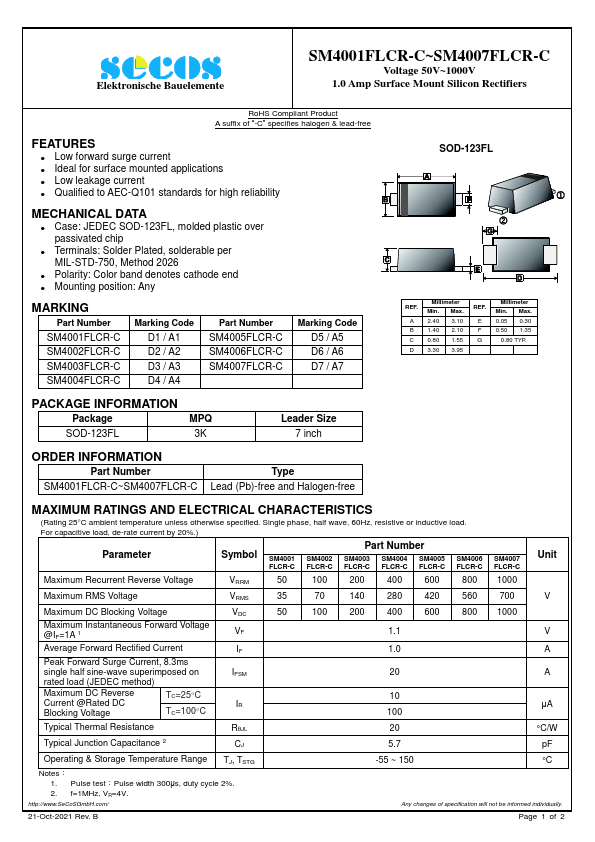

SM4007FLCR-C, SM4001FLCR-C 1.0 Amp Surface Mount Silicon Rectifiers

SeCoS

Description

Elektronische Bauelemente SM4001FLCR-C~SM4007FLCR-C Voltage 50V~1000V 1.0 Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-.

📥 Download Datasheet

SM4007FLCR-C Datasheet Preview — This datasheet PDF includes multiple part numbers: SM4007FLCR-C, SM4001FLCR-C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM4007FLCR-C, SM4001FLCR-C
Manufacturer: SeCoS
File Size: 325.28 KB
Datasheet: SM4001FLCR-C-SeCoS.pdf
Description: 1.0 Amp Surface Mount Silicon Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM4007FLCR-C, SM4001FLCR-C.
Please refer to the document for exact specifications by model.

Features

* Low forward surge current

Applications

* Low leakage current
* Qualified to AEC-Q101 standards for high reliability MECHANICAL DATA
* Case: JEDEC SOD-123FL, molded plastic over passivated chip
* Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026
* Polarity: Color band denotes cathode end
* Mounting
