SMF507C

The SMF507C is SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	SMF507C, SMF501C
Manufacturer	Sunmate
File Size	232.26 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	SMF501C-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SMF507C, SMF501C. Please refer to the document for exact specifications by model.

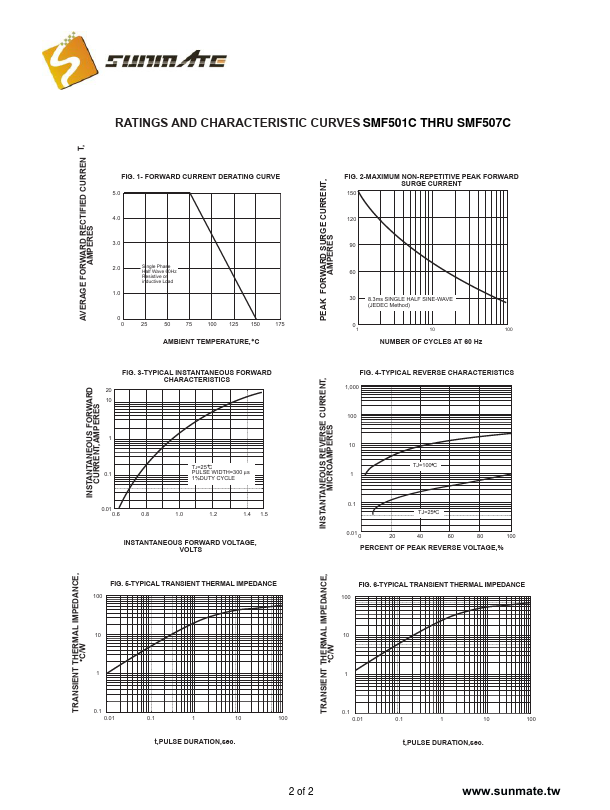

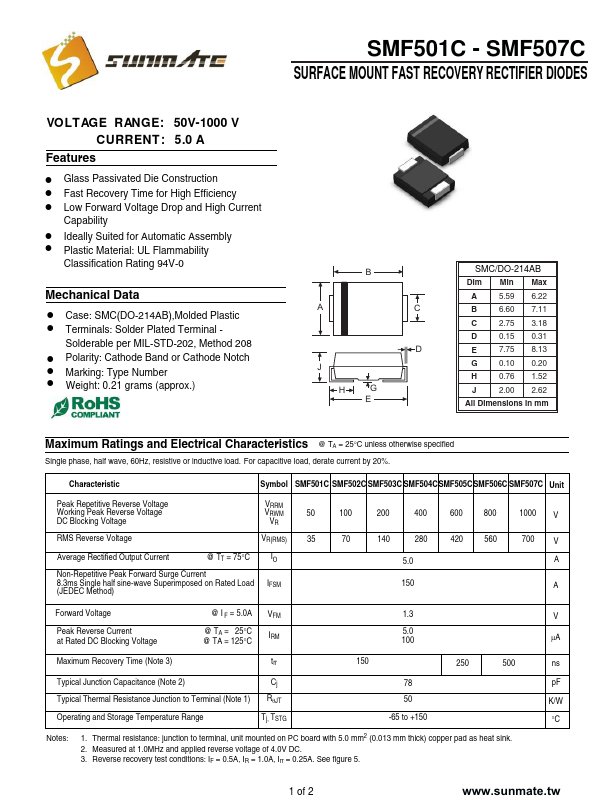

Additional preview pages of the SMF507C datasheet.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A C D J H G E SMC/DO-214AB.
