ST3617 Infrared remote control decoder

Description

Email: info@sunrom.com Visit us at http://www.sunrom.com Document: Datasheet Date: 28-Feb-12 Model #: 3617 Product’s Page: www.sunrom.com/p-963.ht.

📥 Download Datasheet

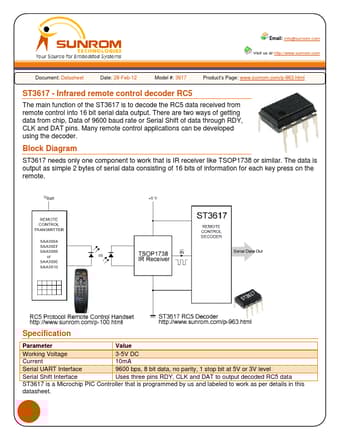

ST3617 Datasheet Preview — Preview of ST3617 PDF

Datasheet Specifications

Part number: ST3617
Manufacturer: Sunrom
File Size: 425.91 KB
Datasheet: ST3617-Sunrom.pdf
Description: Infrared remote control decoder

Features

* of Protocol
* 5 bit address and 6 bit command length
* Bi-phase coding (aka Manchester coding)
* Carrier frequency of 36kHz or 38kHz
* Constant bit time of 1.778ms (64 cycles of 36 kHz), Different timing for 38Khz, Should be adjusted in decoder part by monitoring fir

Applications

* can be developed using the decoder. Block Diagram ST3617 needs only one component to work that is IR receiver like TSOP1738 or similar. The data is output as simple 2 bytes of serial data consisting of 16 bits of information for each key press on the remote. Specification Parameter Value Working
