KBPC1504 SINGLE-PHASE BRIDGE RECTIFIER

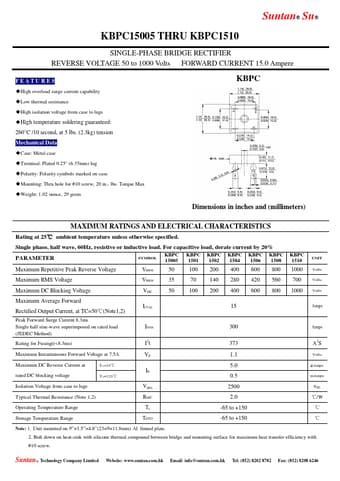

Suntan® Su® KBPC15005 THRU KBPC1510 SINGLE-PHASE BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 15.0 Ampere FEATU RE S High overload surge current capability Low thermal resistance High isolation voltage from case to lugs High temperature soldering guaranteed: 260°C /10 second, at 5 lbs. (2.3kg) tension Mechanical Data Case: Metal case Terminal: Plated 0.25" (6.35mm) lug Polarity: Polarity symbols marked on case Mounting: Thru hole fo.

KBPC15005-Suntan.pdf

KBPC1504 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC1504, KBPC15005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBPC1504, KBPC15005

Manufacturer:

Suntan

File Size:

225.57 KB

Description:

Single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: KBPC1504, KBPC15005.
Please refer to the document for exact specifications by model.
