KBPC1501 Datasheet - Suntan

KBPC1501 SINGLE-PHASE BRIDGE RECTIFIER

Suntan® Su® KBPC15005 THRU KBPC1510 SINGLE-PHASE BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 15.0 Ampere FEATU RE S High overload surge current capability Low thermal resistance High isolation voltage from case to lugs High temperature soldering guaranteed: 260°C /10 second, at 5 lbs. (2.3kg) tension Mechanical Data Case: Metal case Terminal: Plated 0.25" (6.35mm) lug Polarity: Polarity symbols marked on case Mounting: Thru hole fo.

KBPC1501 Datasheet (225.57 KB)

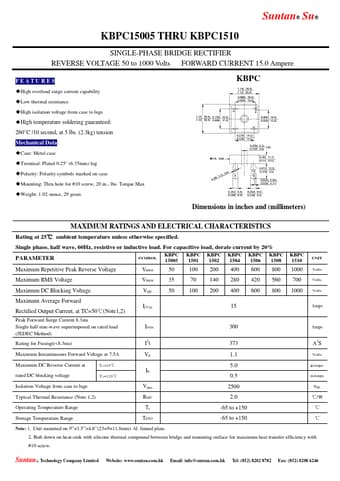

Preview of KBPC1501 PDF
KBPC1501 Datasheet Preview Page 2

Datasheet Details

Part number:

KBPC1501

Manufacturer:

Suntan

File Size:

225.57 KB

Description:

Single-phase bridge rectifier.
