KBPC1501P, KBPC1500P-WON - 15A SINGLE PHASE BRIDGE RECTIFIER

KBPC1501P Description

® WON-TOP ELECTRONICS KBPC15P SERIES 15A SINGLE PHASE BRIDGE RECTIFIER Pb .

KBPC1501P Features

* Diffused Junction
* Low Reverse Leakage Current
* Low Power Loss, High Efficiency
* Heatsink Integrated Epoxy Case for Maximum Heat Dissipation
* Low Thermal Resistance
* High Surge Current Capability
* Recognized File # E157705 D H Mechanical Data K
* Case:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC1501P, KBPC1500P-WON. Please refer to the document for exact specifications by model.

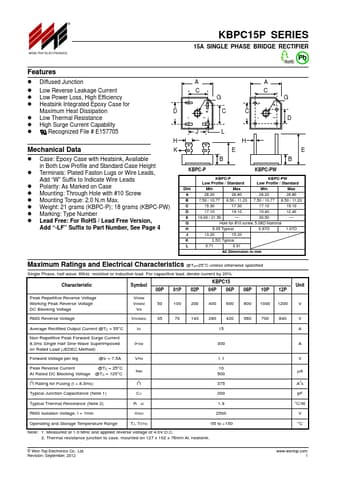

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC1501P, KBPC1500P-WON
Manufacturer
WON-TOP
File Size
43.32 KB
Datasheet
KBPC1500P-WON-TOP.pdf
Description
15A SINGLE PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: KBPC1501P, KBPC1500P-WON.
Please refer to the document for exact specifications by model.
