RS5A SURFACE MOUNT SUPER FAST RECTIFIER

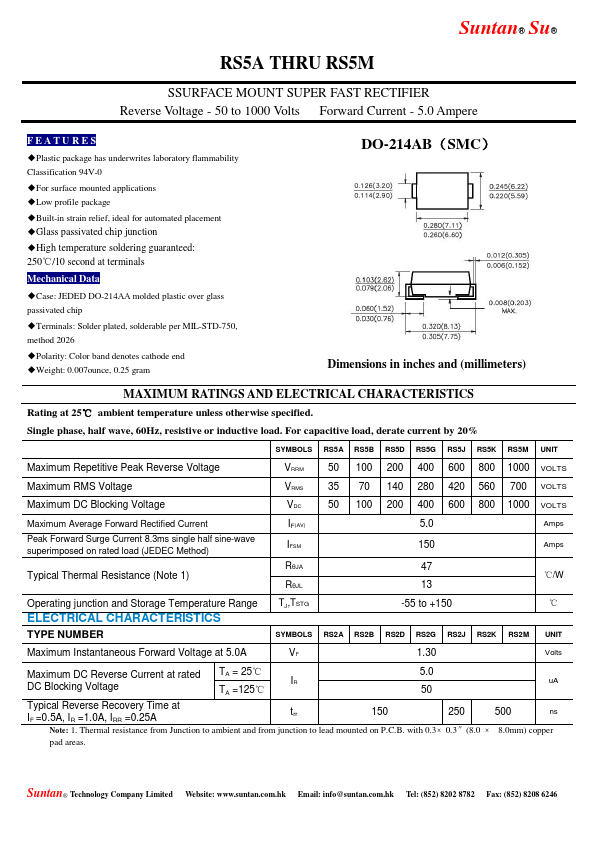

📥 Download Datasheet Datasheet Preview Page 1

Description

Suntan® Su® RS5A THRU RS5M SSURFACE MOUNT SUPER FAST RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Ampere FEATU RE S *Plast.

📥 Download Datasheet

Preview of RS5A PDF

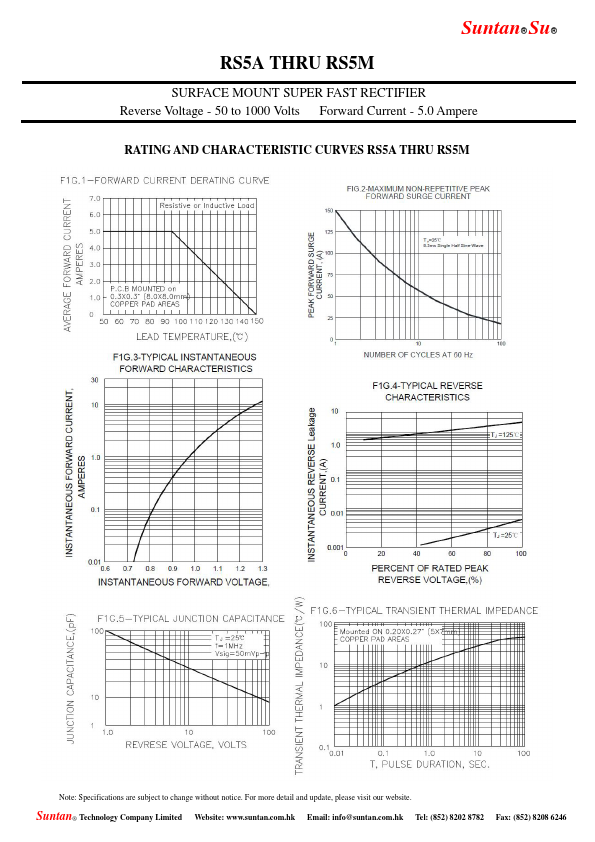

datasheet Preview Page 2

Datasheet Specifications

Part number
RS5A
Manufacturer
Suntan
File Size
249.06 KB
Datasheet
RS5A-Suntan.pdf
Description
SURFACE MOUNT SUPER FAST RECTIFIER

Applications

* Low profile package
* Built-in strain relief, ideal for automated placement
* Glass passivated chip junction
* High temperature soldering guaranteed: 250℃/10 second at terminals Mechanical Data
* Case: JEDED DO-214AA molded plastic over glass passivated chip
* Terminals: Solder p
