SKBPC2501 Datasheet - Suntan

SKBPC2501 SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS

Suntan® Su® SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516 SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS Voltage Range 50 to 1600 Volts Current 25 Amperes FEAT U R E S Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Ideal for Printed Circuit Boards: Mechanical Data Case:Epoxy Case with Heat Sink lnterally Mounted in the Bridge Encapsulation Terminals:Plated Leads Soiderable per MIL-S.

SKBPC2501 Datasheet (798.92 KB)

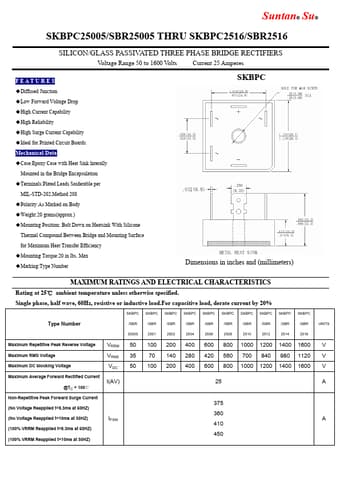

Preview of SKBPC2501 PDF
SKBPC2501 Datasheet Preview Page 2 SKBPC2501 Datasheet Preview Page 3

Datasheet Details

Part number:

SKBPC2501

Manufacturer:

Suntan

File Size:

798.92 KB

Description:

Silicon/glass passivated three phase bridge rectifiers.
