SKBPC2504, SKBPC25005 Datasheet - Suntan

SKBPC2504 SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS

SuntanĀ® SuĀ® SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516 SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS Voltage Range 50 to 1600 Volts Current 25 Amperes FEAT U R E S Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Ideal for Printed Circuit Boards: Mechanical Data Case:Epoxy Case with Heat Sink lnterally Mounted in the Bridge Encapsulation Terminals:Plated Leads Soiderable per MIL-S.

SKBPC25005-Suntan.pdf

This datasheet PDF includes multiple part numbers: SKBPC2504, SKBPC25005. Please refer to the document for exact specifications by model.

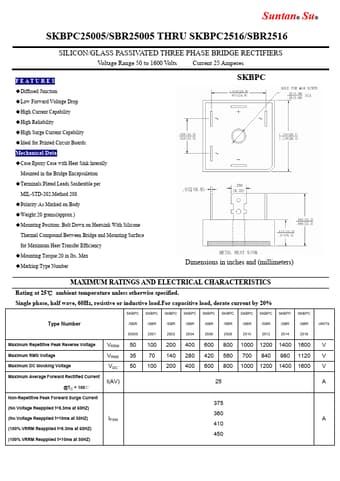

SKBPC2504 Datasheet Preview Page 2 SKBPC2504 Datasheet Preview Page 3

Datasheet Details

Part number:

SKBPC2504, SKBPC25005

Manufacturer:

Suntan

File Size:

798.92 KB

Description:

Silicon/glass passivated three phase bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SKBPC2504, SKBPC25005.
Please refer to the document for exact specifications by model.
