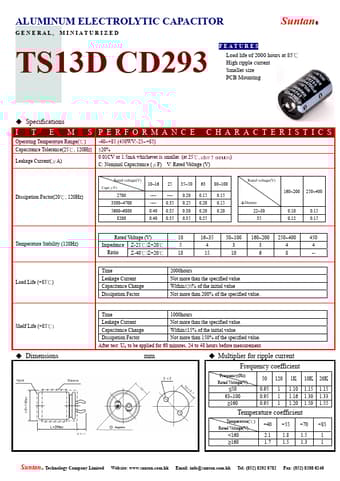

TS13D-CD293 ALUMINUM ELECTROLYTIC CAPACITOR

ALUMINUM ELECTROLYTIC CAPACITOR GENERAL, MINIATURIZED Suntan® TS13D CD293 FEAT U R E S Load life of 2000 hours at 85℃ High ripple current Smaller size PCB Mounting Specifications ITEMS Operating Temperature Range(℃) Capacitance Tolerance(25℃, 120Hz) Leakage Current(μA) PERFORMANCE CHARACTERISTICS -40~+85 (450WV:-25~+85) ±20% 0.01CV or 1.5mA whichever is smaller. (at 25℃, after 5 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V) Dissipation Factor(20℃, 120Hz) Rated voltage(V).
