TS15 CERAMIC DISC CAPACITOR

CERAMIC DISC CAPACITOR CLASS I TEMPERATURE COMPENSATION Suntan® TS15 FEAT U R E S ‧ Linear temperature coefficient of capacitance. ‧ High stability of capacitance. ‧ Low loss at wide ranfe of frequency. S P E C I F I C AT I O N S OPERATING TEMPERATURE RANGE RATED WORKING VOLTAGE TEST VOLTAGE CAPACITANCE Q FACTOR INSULATION RESISTANCE -25℃ TO +85℃ DC 50V, 100V, 500V 3 times of the rated voltage Within the tolerance at 1 MHz, 1±0.2 Vrms. 25℃ At 1 MHz. 1±0.2 Vrms. 25℃ C≥30pF ……Q≥1,000 C<30pF ….

TS15 Datasheet (149.70 KB)

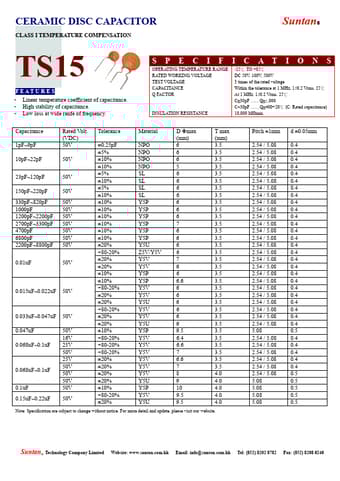

TS15 Datasheet Preview — Preview of TS15 PDF

Datasheet Details

Part number:

TS15

Manufacturer:

Suntan

File Size:

149.70 KB

Description:

Ceramic disc capacitor.
