SSF60R099SFD - 600V N-Channel Super-Junction MOSFET

Product Overview

Datasheet Details

Part number	SSF60R099SFD
Manufacturer	Super Semiconductor
File Size	914.63 KB
Description	600V N-Channel Super-Junction MOSFET
Datasheet	SSF60R099SFD Datasheet

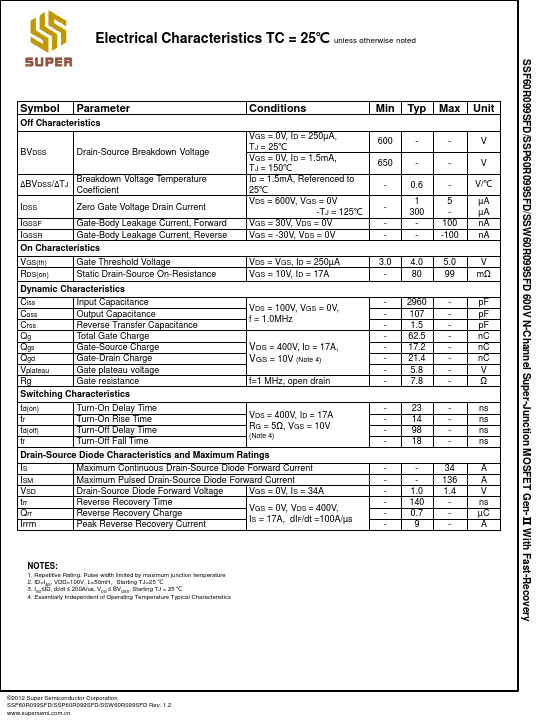

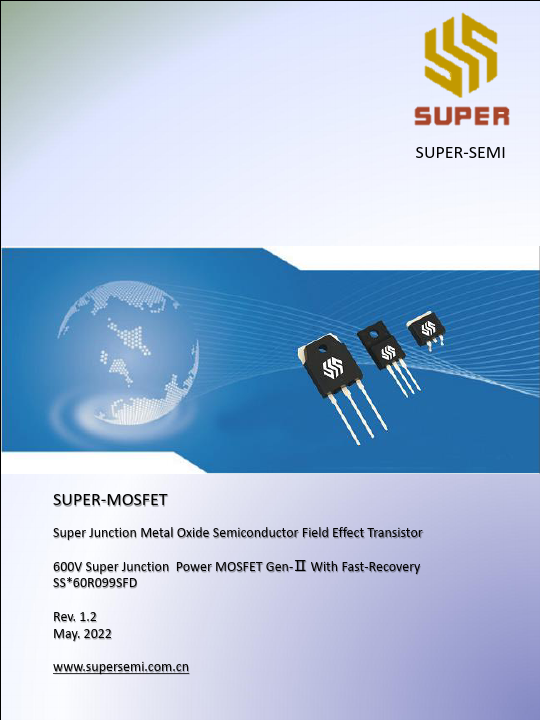

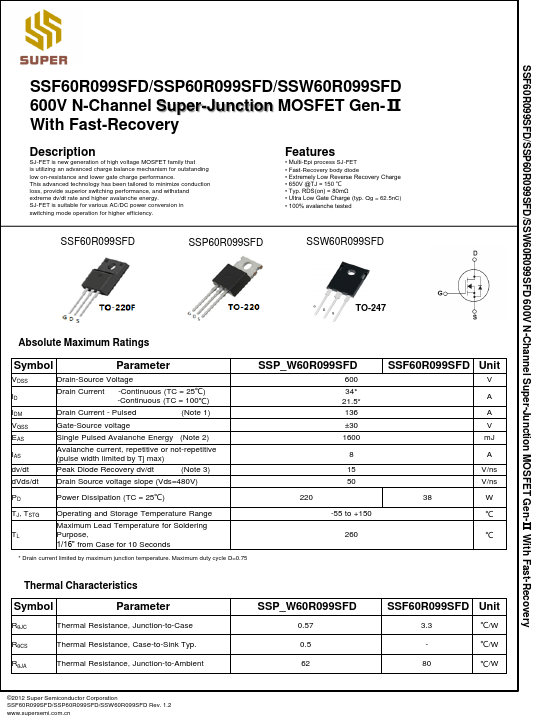

Additional preview pages of the SSF60R099SFD datasheet.

Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
Fast-Recovery body diode.
Extremely Low Reverse Recovery Charge.
650V @TJ = 150 ℃.
Typ. RDS(on) = 80mΩ.
Ultra Low Gate Charge (typ. Qg = 62.5nC).
100% avalanche tested SSF60R099SFD SSP60R099SFD SSW60R099SFD TO-247 Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note.
