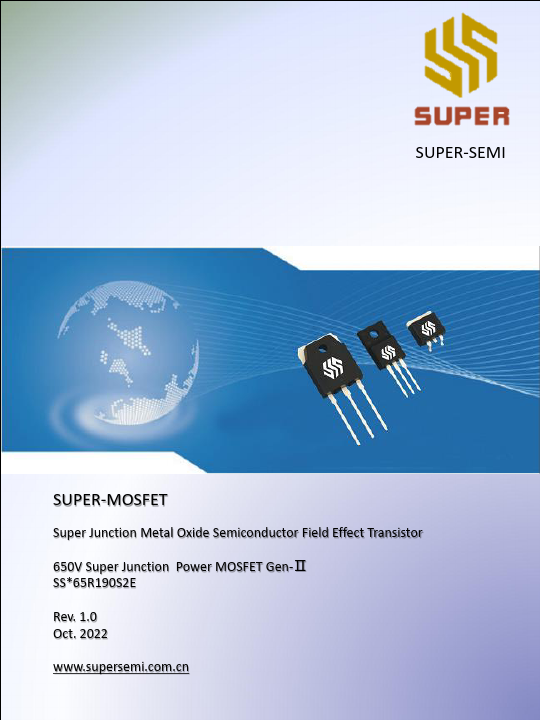

SSF65R190S2E - 650V N-Channel Super-Junction MOSFET

SSF65R190S2E Datasheet Preview — Preview of SSF65R190S2E PDF

Datasheet Details

Part number	SSF65R190S2E
Manufacturer	Super Semiconductor
File Size	765.81 KB
Description	650V N-Channel Super-Junction MOSFET
Datasheet	SSF65R190S2E-SuperSemiconductor.pdf

SSF65R190S2E Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
700V @TJ = 150 ℃.
Typ. RDS(on) = 150mΩ.
Ultra Low Gate Charge (typ. Qg = 31nC).

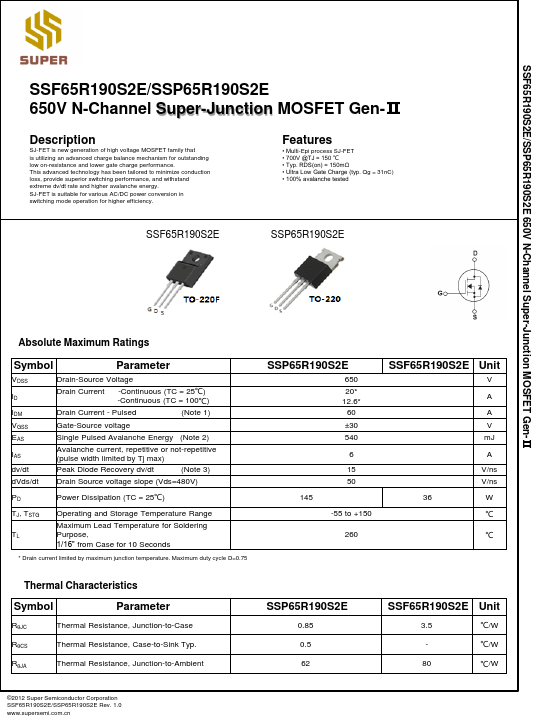

100% avalanche tested SSF65R190S2E SSP65R190S2E Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source voltage Single Pulsed Avalanche Energy (Note 2) Avalanche current, repetitive or not-rep.
