HV623 - 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver

Datasheet Summary

Description

The HV623 is a 32-channel driver IC for gray shade display use.

It is designed to produce varying output voltages between 3 and 80 volts.

This amplitude modulation at the output is facilitated by an external ramp voltage VR.

Features

  • 5V CMOS inputs Up to 80V modulation voltage Capable of 128 levels of gray shading 20MHz data throughput rate 32 outputs per device (can be cascaded) Pin-programmable shift direction (DIR) D/A conversion cycle time is 32µs Diodes in output structure allow usage in energy recovery systems Integrated HVCMOS® technology Available in 3-sided 64-lead gullwing package General.

📥 Download Datasheet

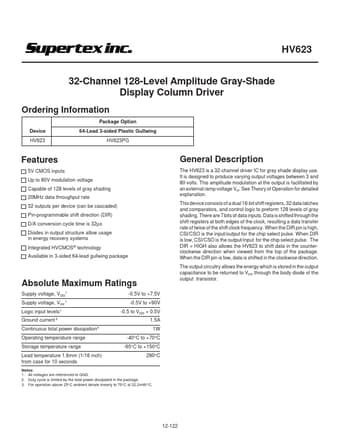

Datasheet preview – HV623

Datasheet Details

Part number HV623
Manufacturer Supertex Inc
File Size 64.50 KB
Description 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver
Datasheet download datasheet HV623 Datasheet
Additional preview pages of the HV623 datasheet.

📁 Similar Datasheet

  • HV6 - Fast Switching High Voltage Rectifier (Sirocco)
  • HV60 - 32-Channel Liquid Crystal Display Driver (Supertex)
  • HV600S10 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S15 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S20 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV632 - 256 Gray-Shade High Voltage Driver (Supertex)
  • HV633 - 128-Level Amplitude Gray-Shade Display Column Driver (Supertex)
  • HV6506 - 32-Channel LCD Driver (Supertex)
  • HV6810 - 10-Channel Serial-Input Latched Display Driver (Microchip)
  • HV6X1P8 - SHORT PROTECTOR (Frontier Electronics)
Other Datasheets by Supertex Inc
  • HV62208 - 32-Channel 256 Gray-Shade High Voltage Driver
  • HV6008 - 32-Channel 40V Liquid Crystal Display Row Driver
  • HV66 - 32-Channel LCD Driver
  • HV6810 - 10-Channel Serial-Input Latched Display Driver

Full PDF Text Transcription

Click to expand full text
HV623 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver Ordering Information Package Option Device HV623 64-Lead 3-sided Plastic Gullwing HV623PG Features 5V CMOS inputs Up to 80V modulation voltage Capable of 128 levels of gray shading 20MHz data throughput rate 32 outputs per device (can be cascaded) Pin-programmable shift direction (DIR) D/A conversion cycle time is 32µs Diodes in output structure allow usage in energy recovery systems Integrated HVCMOS® technology Available in 3-sided 64-lead gullwing package General Description The HV623 is a 32-channel driver IC for gray shade display use. It is designed to produce varying output voltages between 3 and 80 volts. This amplitude modulation at the output is facilitated by an external ramp voltage VR.
