HV9605C

High Voltage Current Mode PWM Controller

Supertex Inc

HV9605C Features

* ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ BiCMOS/DMOS technology Current mode control 49% duty cycle operation Programmable START/STOP capability 15V to 250V input range internal start-up regulator 6.0µA standby supply current for +VIN

HV9605C General Description

The Supertex HV9605C is a BiCMOS/DMOS single-output, current mode, pulse width modulator IC designed to meet the requirements of ETR-080 for ISDN applications. In a 14 pin package, it provides all the necessary functions to implement a single-switch PWM with a minimum of external parts. Utilizing Su.

HV9605C Datasheet (312.19 KB)

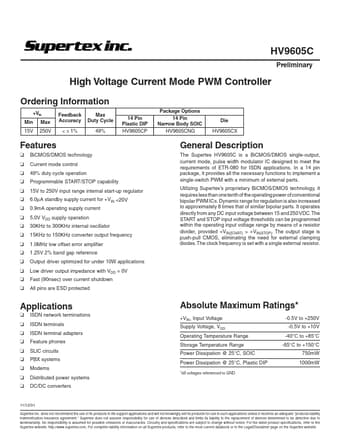

HV9605C Datasheet Preview — Preview of HV9605C PDF

Datasheet Details

Part number:

HV9605C

Manufacturer:

Supertex Inc

File Size:

312.19 KB

Description:

High voltage current mode pwm controller.
HV9605C Preliminary High Voltage Current Mode PWM Controller Ordering Information +VIN Min 15V Max 250V Feedback Accuracy < ± 1% Max Duty Cycle 49% 1.
