HV9102 - High-Voltage Switchmode Controllers with MOSFET

HV9102 Description

HV9100 HV9102 HV9103 High-Voltage Switchmode Controllers with MOSFET Ordering Information +VIN Min 10V 10V 10V Max 70V 120V 120V Feedback Voltage ± 1..
The Supertex HV9100 through HV9103 are a series of BiCMOS/ DMOS single-output, pulse width modulator ICs intended for use in high-speed high-efficienc.

HV9102 Applications

* ❏ DC/DC Converters ❏ Distributed Power Systems ❏ ISDN Equipment ❏ PBX Systems ❏ Modems Absolute Maximum Ratings +VIN, Input Voltage VDS VDD, Logic Voltage 120V 200V 15.0V Input Voltage Logic, Linear, FB and Sense -0.3V to VDD+0.3V ID (Peak) Storage Temperature Power Dissipation, Plastic DIP Power

📥 Download Datasheet

Preview of HV9102 PDF

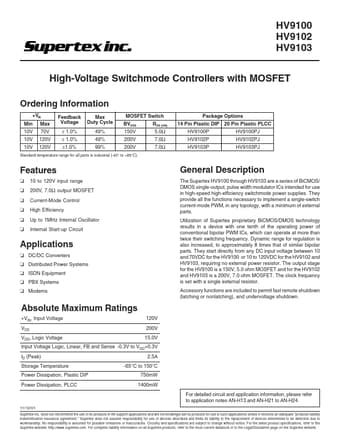

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV9102
Manufacturer
Supertex Inc
File Size
319.76 KB
Datasheet
HV9102_SupertexInc.pdf
Description
High-Voltage Switchmode Controllers with MOSFET
