HV9105 Datasheet, Mosfet, Supertex Inc

HV9105 Features

  • Mosfet ❏ ❏ ❏ ❏ ❏ ❏ 10 to 120V input range 200V, 5Ω output MOSFET Current-Mode Control High Efficiency CCITT Compatible Internal Start-up Circuit General Description The Supertex HV9105 and HV

PDF File Details

Part number:

HV9105

Manufacturer:

Supertex Inc

File Size:

320.03kb

Download:

📄 Datasheet

Description:

High-voltage switchmode controllers with mosfet. The Supertex HV9105 and HV9108 are high-efficiency high voltage SMPS ICs intended for use in power converters requiring extreme effic

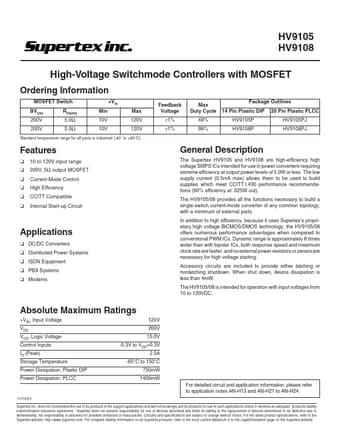

Datasheet Preview: HV9105 📥 Download PDF (320.03kb)
Page 2 of HV9105 Page 3 of HV9105

HV9105 Application

  • Applications ❏ DC/DC Converters ❏ Distributed Power Systems ❏ ISDN Equipment ❏ PBX Systems ❏ Modems Absolute Maximum Ratings +VIN, Input Voltage VD
