HV9110 Datasheet, Controller, Supertex Inc

HV9110 Features

  • Controller ❏ ❏ ❏ ❏ ❏ ❏ 10 to 120V input range Current-mode control High efficiency Up to 1.0MHz internal oscillator Internal start-up circuit Low internal noise General Description The Supertex H

PDF File Details

Part number:

HV9110

Manufacturer:

Supertex Inc

File Size:

324.60kb

Download:

📄 Datasheet

Description:

High-voltage current-mode pwm controller. The Supertex HV9110 through HV9113 are a series of BiCMOS/ DMOS single-output, pulse width modulator ICs intended for use in high-spe

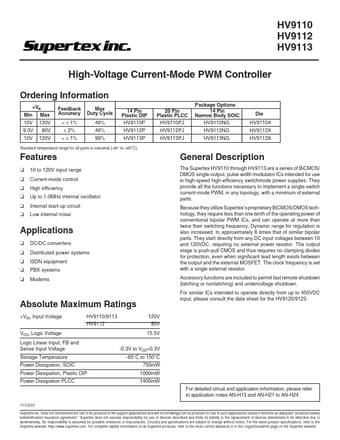

Datasheet Preview: HV9110 📥 Download PDF (324.60kb)
Page 2 of HV9110 Page 3 of HV9110

HV9110 Application

  • Applications ❏ ❏ ❏ ❏ ❏ DC/DC converters Distributed power systems ISDN equipment PBX systems Modems Absolute Maximum Ratings +VIN, Input Voltage VD
