HV9113 - High-Voltage Current-Mode PWM Controller

Supertex Inc

📥 Download Datasheet

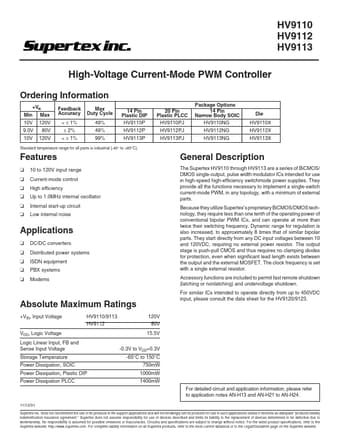

HV9113 Datasheet Preview — Preview of HV9113 PDF

Datasheet Details

Part number: HV9113
Manufacturer: Supertex Inc
File Size: 324.60 KB
Datasheet: HV9113_SupertexInc.pdf
Description: High-Voltage Current-Mode PWM Controller

HV9113 Product details

Description

The Supertex HV9110 through HV9113 are a series of BiCMOS/ DMOS single-output, pulse width modulator ICs intended for use in high-speed high-efficiency switchmode power supplies..

Features

❏ ❏ ❏ ❏ ❏ ❏ 10 to 120V input range Current-mode control High efficiency Up to 1.0MHz internal oscillator Internal start-up circuit Low internal noise General.
