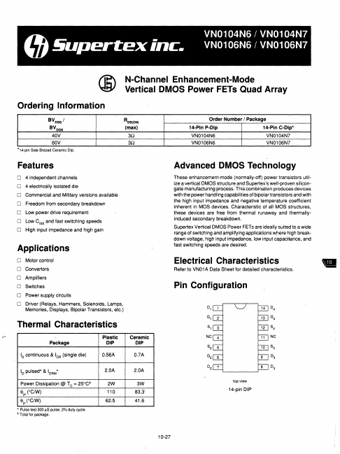

VN0104N6 Datasheet, Array, Supertex

VN0104N6 Features

• Array o 4 independent channels o 4 electrically isolated die o Commercial and Military versions available o Freedom from secondary breakdown o Low power drive requirement o Low CISS and fast

PDF File Details

Part number:

VN0104N6

Manufacturer:

Supertex

File Size:

62.69kb

Download:

📄 Datasheet

Description:

N-channel enhancement-mode vertical dmos power fets quad array.

VN0104N6 Application

• Applications o Motor control o Convertors o Amplifiers o Switches o Power supply circuits o Driver (Relays, Hammers, Solenoids, Lamps, Memories, Dis
