PDB1003 SMD POWER INDUCTORS

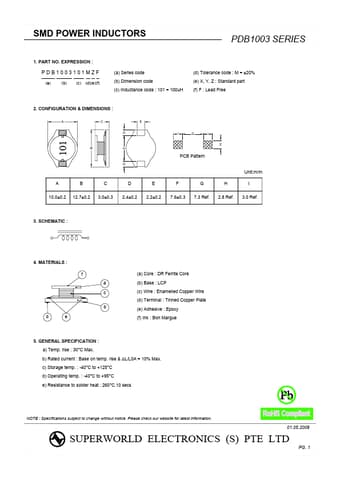

www.DataSheet.co.kr SMD POWER INDUCTORS 1. PART NO. EXPRESSION : PDB1003 SERIES PDB1003101MZF (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 101 = 100uH (d) Tolerance code : M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A C D E I G I H 101 B F PCB Pattern D Unit:m/m A 10.0±0.2 B 12.7±0.2 C 3.0±0.3 D 2.4±0.2 E 2.2±0.2 F 7.6±0.3 G 7.3 Ref. H 2.8 Ref. I 3.0 Ref. 3. SCHEMATIC : 4. MATERIALS : f a c b d e (a) Cor.
