PDB1507 SMD POWER INDUCTORS

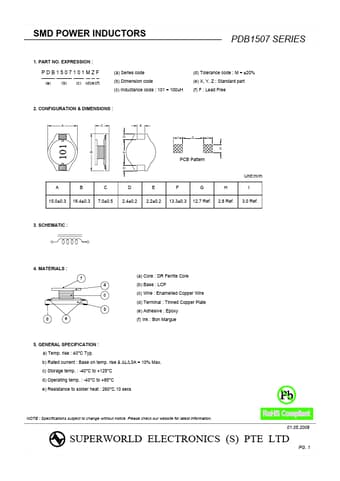

www.DataSheet.co.kr SMD POWER INDUCTORS 1. PART NO. EXPRESSION : PDB1507 SERIES PDB1507101MZF (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 101 = 100uH (d) Tolerance code : M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A C D E I G I H 101 B F PCB Pattern D Unit:m/m A 15.0±0.3 B 18.4±0.3 C 7.0±0.5 D 2.4±0.2 E 2.2±0.2 F 13.3±0.3 G 12.7 Ref. H 2.8 Ref. I 3.0 Ref. 3. SCHEMATIC : 4. MATERIALS : f a c b d e (a.

PDB1507 Datasheet (555.59 KB)

Preview of PDB1507 PDF
PDB1507 Datasheet Preview Page 2 PDB1507 Datasheet Preview Page 3

Datasheet Details

Part number:

PDB1507

Manufacturer:

Superworld Electronics

File Size:

555.59 KB

Description:

Smd power inductors.
