SSC1005 Datasheet - Superworld Electronics

SSC1005 - SMD POWER INDUCTORS

SMD POWER INDUCTORS 1.

PART NO.

EXPRESSION : SSC1005 SERIES SSC10052R4YZF (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 2R4 = 2.4uH (d) Tolerance code : Y = ±30% (e) X, Y, Z : Standard part (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : I A C G D E 2R 4 B PCB Pattern Unit:m/m A B C D 6.80 Ref.

E 11.50 Ref.

F 7.70 Ref.

G 7.30 Ref.

H 7.20 Ref.

H F I 3.50 Ref.

10.00±0.30 10.00±0.30 5.00 Max.

3.

SCHEMATIC : 4.

MATERIALS : (a) Core : DR Ferri

SSC1005_SuperworldElectronics.pdf

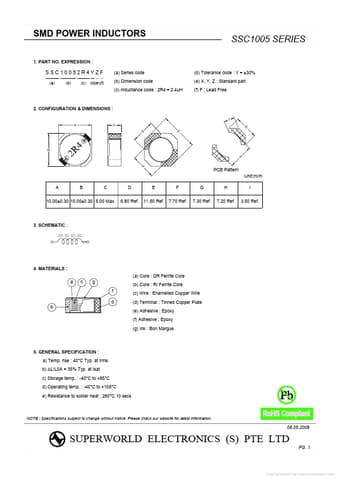

Preview of SSC1005 PDF
SSC1005 Datasheet Preview Page 2 SSC1005 Datasheet Preview Page 3

Datasheet Details

Part number:

SSC1005

Manufacturer:

Superworld Electronics

File Size:

442.67 KB

Description:

Smd power inductors.
