SSC1118

1A Positive Low Dropout Fixed-Mode Regulator

SSC1118 Features

* 1.4V Max. Dropout Voltage At Full Load Current

* Enable Function

* Fixed Output Voltage 1.5V,1.8V,2.5V,3.3V,5.0V,9.0V,12V

* Output Current Limiting

* Good Noise Rejection

* Fast Transient Response

* Built-in Thermal Shutdown REF. A B C D E F Min. 5.80 4.80 3.80 0 0.40

SSC1118 General Description

The SSC1118 is a low dropout positive fixed-mode regulator with min. of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as highspeed bus termination and low current 3.3V logic supply.SSC1118 is also well suited .

SSC1118 Datasheet (542.62 KB)

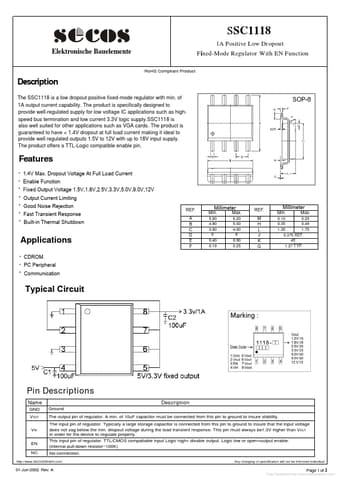

Preview of SSC1118 PDF

Datasheet Details

Part number:

SSC1118

Manufacturer:

SeCoS

File Size:

542.62 KB

Description:

1a positive low dropout fixed-mode regulator.
