SSCD202, SSCD206, (SSCD202 - SSCD210) 2.0 AMP Surface Mount Schottky Barrier Rectifiers

SSCD202 THRU SSCD210 Elektronische Bauelemente VOLTAGE 20V ~ 100V 2.0 AMP Surface Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of.

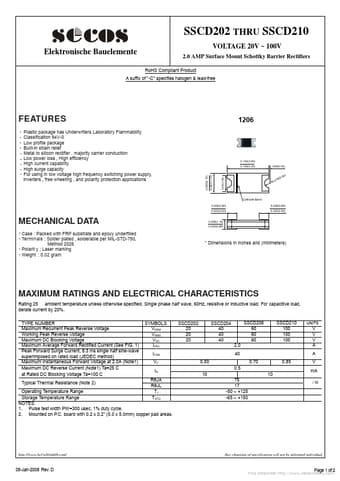

datasheet Preview Page 1 from Datasheet4u.com

SSCD206_SeCoS.pdf

SSCD202 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSCD202, SSCD206. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SSCD202, SSCD206

Manufacturer:

SeCoS

File Size:

415.82 KB

Description:

(SSCD202 - SSCD210) 2.0 AMP Surface Mount Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SSCD202, SSCD206.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Low profile package Built-in strain relief Metal to silicon rectifier , majority carrier conduction Low power loss , High efficiency High current capability High surge

Applications

* 1206 0.142(3.60) 0.126(3.20) .002(0.05) .40 6( 0 ) 0.083(2.10) 0.067(1.70) 0.063(1.60) R0 .01 Cathode Band 0.035(0.90) 0.020(0.50) 0.035(0.90) 0.020(0.50) MECHANICAL DATA
* Case : Packed with FRP substrate and epoxy underfilled
* Terminals : Solder plated , solderable per MIL-STD-75
