Datasheet Details
Part number:
V3N120-B-10, V3N150-B-10
Manufacturer:
Superworld
File Size:
380.71 KB
Description:
(v3n series) high voltage chip capacitors.
Note:
This datasheet PDF includes multiple part numbers: V3N120-B-10, V3N150-B-10.
Please refer to the document for exact specifications by model.

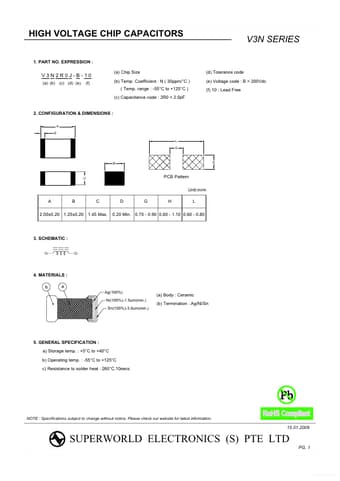

V3N120-B-10, V3N150-B-10, (V3N Series) HIGH VOLTAGE CHIP CAPACITORS
HIGH VOLTAGE CHIP CAPACITORS 1.
PART NO.
EXPRESSION : V3N SERIES V3N2R0J-B-10 (a) (b) (c) (d) (e) (f) (a) Chip Size (b) Temp.
Coefficient : N ( 30ppm/°C ) ( Temp.
range : -55°C to +125°C ) (c) Capacitance code : 2R0 = 2.0pF (d) Tolerance code (e) Voltage code : B = 200Vdc (f) 10 : Lead Free 2.
CONFIGURATION & DIMENSIONS : A D L G B C PCB Pattern Unit:m/m A B C D G H L 2.00±0.20 1.25±0.20 1.45 Max.
0.20 Min.
0.70 - 0.90 0.80 - 1.10 0.60 - 0.80 3.
SCHEMATIC : 4.
MATERIALS : b a
