Z7M132-RN-10 (Z7 Series) FERRITE CHIP BEADS

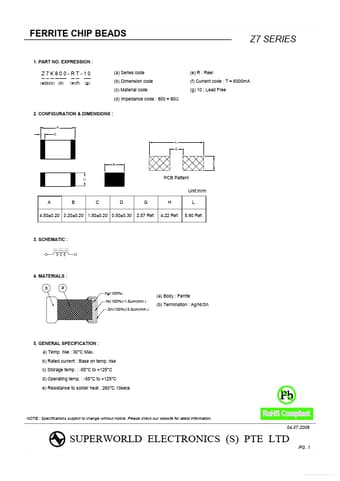

FERRITE CHIP BEADS 1. PART NO. EXPRESSION : Z7 SERIES Z7K800-RT-10 (a)(b)(c) (d) (e)(f) (g) (a) Series code (b) Dimension code (c) Material code (d) Impedance code : 800 = 80ȍ (e) R : Reel (f) Current code : T = 6000mA (g) 10 : Lead Free 2. CONFIGURATION & DIMENSIONS : A D L G B C PCB Pattern Unit:m/m A B C D G 2.57 Ref. H 4.22 Ref. L 5.90 Ref. 4.50±0.20 3.20±0.20 1.50±0.20 0.50±0.30 3. SCHEMATIC : 4. MATERIALS : b a Ag(100%) Ni(100%)-1.5um(min.) Sn(100%)-3.0um(min.) (a) Body .
