* High efficiencies, up to 91% at full rated load current
* Delivers full power with minimal derating - no heatsink required
* Operating input voltage range: 9 - 36 V, 40 V transient for 100 ms
* Fixed frequency switching provides predictable EMI
* No min
IQ18-HPC
SynQor Worldwide Headquarters
1.81 MB

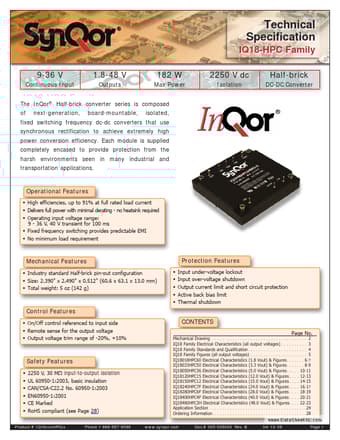

Half-brick dc-dc converter.
www.DataSheet4U.com
Technical Specification
IQ18-HPC Family
1.8-48 V
Outputs
9-36 V
Continuous Input
182 W
Max Power
2250 V dc
Isolation
Half-bri.
