* High efficiencies, 87-91% at full rated load current
* Delivers full power with minimal derating - no heatsink required
* Operating input voltage range: 66-160 V
* Fixed frequency switching provides predictable EMI
* No minimum load requirement Protect
IQ1B-QTC
SynQor Worldwide Headquarters
1.92 MB
Quarter-brick dc-dc converter.
www.DataSheet4U.com

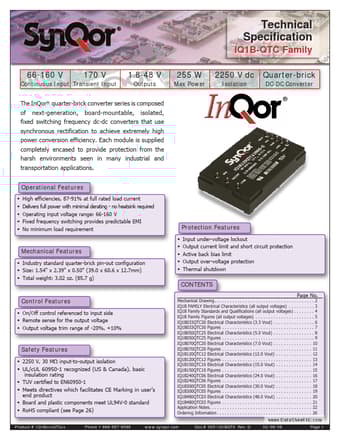

Technical Specification
IQ1B-QTC Family
170 V 1.8-48 V
Outputs
66-160 V
255 W
Max Power
2250 V dc
Isolation
Quarter-brick
DC-.
