* High efficiencies, up to 93% at full rated load current
* Delivers full power with minimal derating - no heatsink required
* Operating input voltage range: 18-36 V, 50 V transient for 100 ms
* Fixed frequency switching provides predictable EMI
* No mini
IQ24-QTC
SynQor Worldwide Headquarters
1.67 MB
Quarter-brick dc-dc converter.
www.DataSheet4U.com

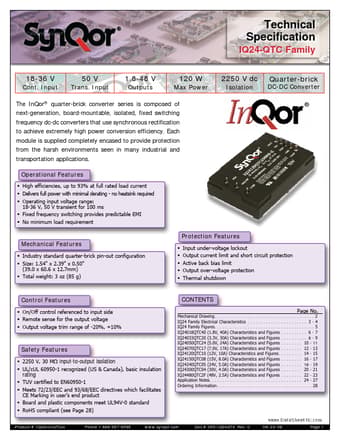

Technical Specification
IQ24-QTC Family
18-36 V
Cont. Input
50 V
Trans. Input
1.8-48 V
Outputs
120 W
Max Power
2250 V dc
Iso.
