* Ultra-high efficiency, 94% at full rated load current, 95% at half rated load current
* Delivers up to 10 A of output current (500 W)
* Wide input voltage range: 18
* 36 V, with 50 V 100 ms input voltage transient capability
* Fixed frequency switching
IQ24500HZX10 Datasheet (1.08 MB)
IQ24500HZX10
SynQor Worldwide Headquarters
1.08 MB
Half-brick dc-dc converter.

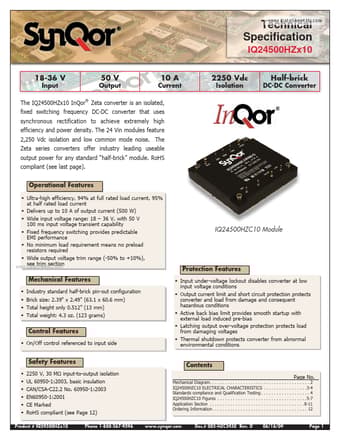

Technical Specification
IQ24500HZx10
18-36 V
Input
Output
50 V
Current
10 A
2250 Vdc
Isolation
DC-DC Converter
Half-brick
The IQ24500HZx10 InQ.
