DB157G, DB151G - (DB151G - DB157G) 1.5A Glass Passivated Bridge Rectifier

TAITRON Components Incorporated

Datasheet Details

Part number	DB157G, DB151G
Manufacturer	TAITRON Components Incorporated
File Size	180.65 KB
Description	(DB151G - DB157G) 1.5A Glass Passivated Bridge Rectifier

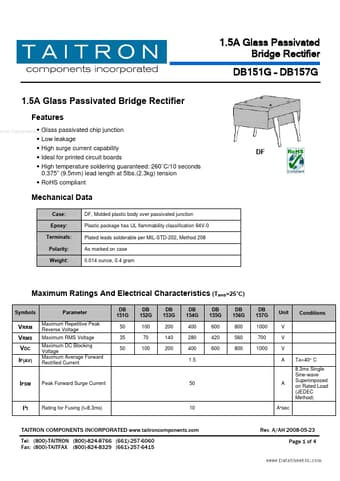

Datasheet	DB151G_TAITRONComponentsIncorporated.pdf
Note	This datasheet PDF includes multiple part numbers: DB157G, DB151G. Please refer to the document for exact specifications by model.

Glass www. DataSheet4U. com passivated chip junction.
Low leakage.
High surge current capability.
Ideal for printed circuit boards.
High temperature soldering guaranteed: 260˚C/10 seconds 0.375” (9.5mm) lead length at 5lbs. (2.3kg) tension.
RoHS compliant DF Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: DF, Molded plastic body over passivated junction Plastic package has UL flammability classification 94V-0 Plated leads solderabl.
