DB157 - SILICON BRIDGE RECTIFIER

This page provides the datasheet information for the DB157, a member of the DB151 SILICON BRIDGE RECTIFIER family.

Datasheet Summary

Description

Part No.

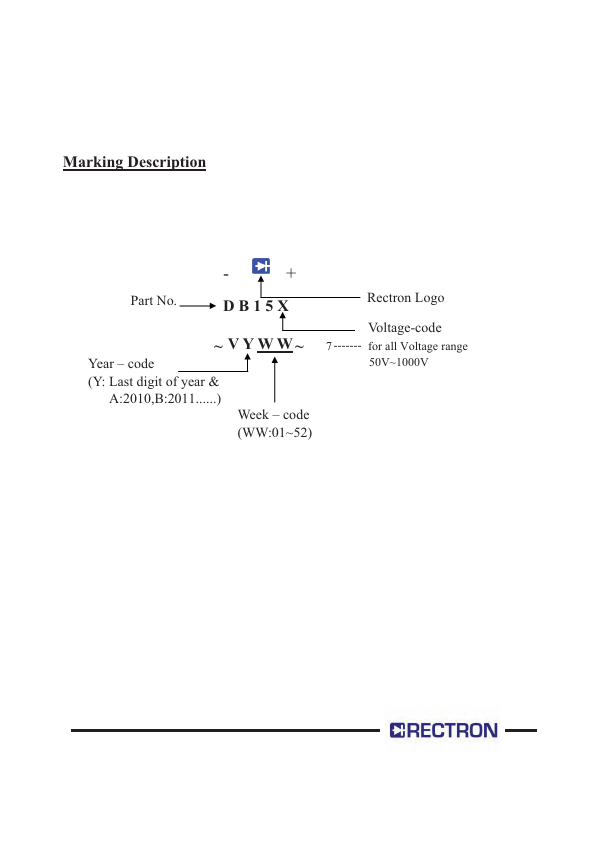

code (Y: Last digit of year & A:2010,B:2011) Week code (WW:01~52) Voltage-code 7 ------- for all Voltage range 50V~1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS TUBE PACK PACKAGE DB-1 PACKING CODE -C EA PER BOX 2,500 INNER

Features

  • Good for automation insertion.
  • Surge overload rating - 40 amperes peak.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded.
  • Glass passivated device.
  • Polarity symbols molded on body.
  • Mounting position: Any.
  • Weight: 1.0 gram.

📥 Download Datasheet

Datasheet preview – DB157

Datasheet Details

Part number DB157
Manufacturer Rectron
File Size 77.90 KB
Description SILICON BRIDGE RECTIFIER
Datasheet download datasheet DB157 Datasheet

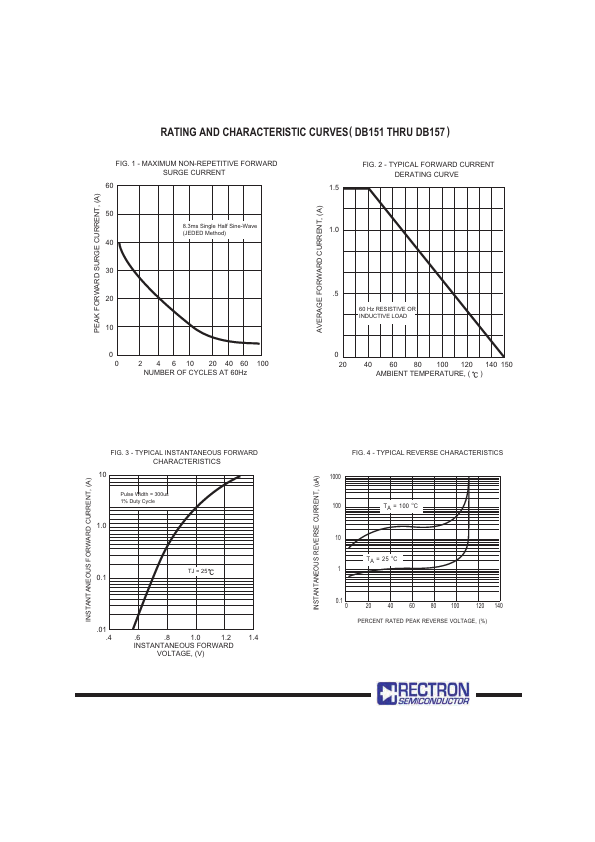

Additional preview pages of the DB157 datasheet.

📁 Similar Datasheet

  • DB157 - GLASS PASSIVATED BRIDGE RECTIFIER (Sunmate)
  • DB157 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (SEMTECH)
  • DB157 - BRIDGE RECTIFIER (RFE)
  • DB157 - Glass Passivated Bridge Rectifiers (HY)
  • DB157 - 1.5 Amp Single Phase Bridge Rectifier (MCC)
  • DB157 - 1.5A Single-Phase Glass Passivated Bridge Rectifiers (SEP ELECTRONIC)
  • DB157 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (Kingtronics)
  • DB157 - SILICON BRIDGE RECTIFIERS (GME)
  • DB157 - Surface Mount Bridge Rectifiers (SeCoS)
  • DB157 - SINGLE PHASE 1.5 AMP BRIDGE RECTIFIERS (YS)
Other Datasheets by Rectron
  • DB157S - SILICON BRIDGE RECTIFIER
  • DB151 - SILICON BRIDGE RECTIFIER
  • DB151S - SILICON BRIDGE RECTIFIER
  • DB152 - SILICON BRIDGE RECTIFIER
  • DB152S - SILICON BRIDGE RECTIFIER
  • DB153 - SILICON BRIDGE RECTIFIER
  • DB153S - SILICON BRIDGE RECTIFIER
  • DB154 - SILICON BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

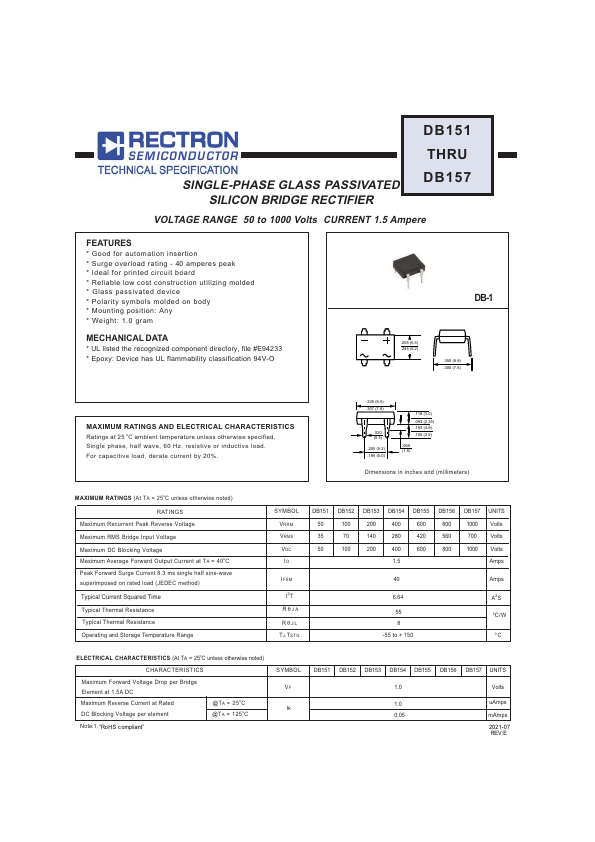

DB151 THRU SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER DB157 VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Ampere FEATURES * Good for automation insertion * Surge overload rating - 40 amperes peak * Ideal for printed circuit board * Reliable low cost construction utilizing molded * Glass passivated device * Polarity symbols molded on body * Mounting position: Any * Weight: 1.0 gram MECHANICAL DATA * UL listed the recognized component directory, file #E94233 * Epoxy: Device has UL flammability classification 94V-O DB-1 .255 (6.5) .245 (6.2) .350 (8.9) .300 (7.6) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
