MB501

(MB5005 - MB5010) 50A Single-Phase Bridge Rectifier

MB501 Features

* www.DataSheet4U.com

* Low

* Reverse Leakage Current Low Power Loss, High Efficiency Electrically Isolated Metal Case for Max. Heat Dissipation Case to Terminal Isolation Voltage 2500V This series is UL recognized under component index, File n

MB501 General Description

Max. Repetitive Peak Reverse Voltage Max. RMS Voltage Max. DC blocking voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current MB5005 50 35 50 MB501 100 70 100 MB502 200 140 200 MB504 400 280 400 50 MB506 600 420 600 MB508 800 560 800 MB5010 1000 700 1000 Unit V V V A Cond.

MB501 Datasheet (151.85 KB)

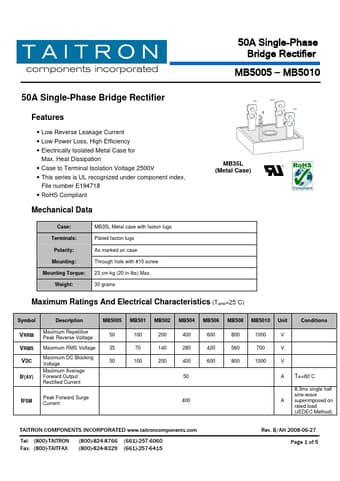

Preview of MB501 PDF

Datasheet Details

Part number:

MB501

Manufacturer:

TAITRON Components Incorporated

File Size:

151.85 KB

Description:

(mb5005 - mb5010) 50a single-phase bridge rectifier.
