TSR520

(TSR520 - TSR5100) 5A Schottky Barrier Rectifiers

TSR520 Features

* Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability RoHS Compliant DO-201AD Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: DO-201AD, Molded Plastic UL 94V-0 rate flame retardant Axial leads, so

TSR520 General Description

Max. Recurrent Peak Reverse Voltage Max. RMS Voltage Max. DC Blocking Voltage Max. Average Forward Rectified Current (FIG.1) TSR 520 20 14 20 TSR 530 30 21 30 TSR 540 40 28 40 TSR 550 50 35 50 5.0 TSR 560 60 42 60 TSR 580 80 56 80 TSR 5100 100 70 100 Unit V V V A 8.3ms single half sine-wave superimp.

TSR520 Datasheet (187.91 KB)

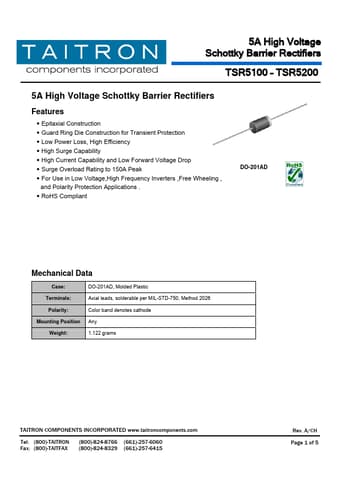

Preview of TSR520 PDF

Datasheet Details

Part number:

TSR520

Manufacturer:

TAITRON Components Incorporated

File Size:

187.91 KB

Description:

(tsr520 - tsr5100) 5a schottky barrier rectifiers.
