TZM5250B

(TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes

TAITRON Components Incorporated

TZM5250B Features

* Planar Die Construction 500mW Power Dissipation Very Sharp Reverse Characteristic Very High Stability Low Reverse Current Level Standard Zener Voltage Tolerance is ± 5 % Ideally Suited for Automated Assembly Processes Ro

TZM5250B General Description

Power Dissipation at Ta=25° C Forward Voltage Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Range Value 500 1.1 0.3 175 -65 to +175 Unit mW V K/mW °C °C Conditions PD VF RthJA TJ TSTG IF=200mA Note: Valid provided that leads at a distance of 10mm from case are ke.

TZM5250B Datasheet (226.20 KB)

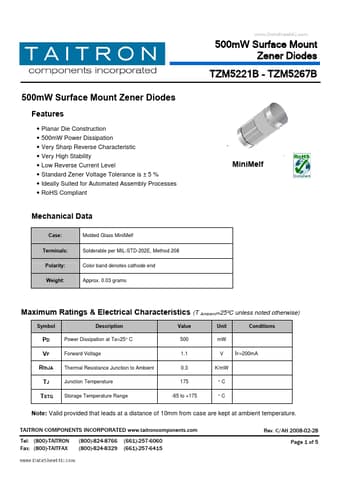

TZM5250B Datasheet Preview — Preview of TZM5250B PDF

Datasheet Details

Part number:

TZM5250B

Manufacturer:

TAITRON Components Incorporated

File Size:

226.20 KB

Description:

(tzm5221b - tzm5267b) 500mw surface mount zener diodes.
