1N5363B, 1N5333B Datasheet - TAITRON

1N5363B 5.0W Zener Diodes

Power Dissipation Non Repetitive Peak Zener Dissipation (t=8.3ms) Value 5.0 180 Unit Conditions W TA=75 °C W VF Max. Forward Voltage Drop 1.2 V IF=3.0A Rthj-a Max. Thermal Resistance at: 10mm Lead Length 20 °C/W TJ,TSTG Operating Junction and Storage Temperature Range -55 to 175 °C TAITR.

1N5363B Features

* Glass passivated junction

* Complete voltage range 3.3 to 200V

* High peak reverse power dissipation

* High reliability

* Low leakage current

* RoHS Compliance 5.0W Zener Diodes 1N5333B

* 1N5388B 1.5KE Mechanical Data Case: Epoxy: Lead: Po

1N5333B-TAITRON.pdf

This datasheet PDF includes multiple part numbers: 1N5363B, 1N5333B. Please refer to the document for exact specifications by model.

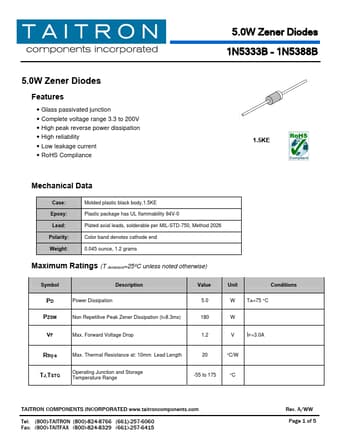

1N5363B Datasheet Preview Page 2 1N5363B Datasheet Preview Page 3

Datasheet Details

Part number:

1N5363B, 1N5333B

Manufacturer:

TAITRON

File Size:

182.61 KB

Description:

5.0w zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N5363B, 1N5333B.
Please refer to the document for exact specifications by model.
