1N5392G 1.5A Glass Passivated Rectifiers

1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G Unit Conditions VRRM VRMS VDC IF(AV) Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 50 35 50 IFSM Peak Forward Surge Current Max.

1N5392G Features

* Glass passivated chip junction

* Low forward voltage drop

* Low reverse leakage

* High forward surge current capability

* High temperature soldering guaranteed: 260°C/10 seconds /.0375" (9.5mm) lead length, 5lbs (2.3kg) tension

* RoHS compliance Mech

1N5392G Datasheet (123.92 KB)

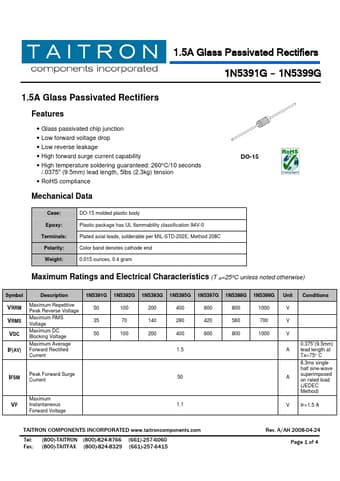

1N5392G Datasheet Preview — Preview of 1N5392G PDF

Datasheet Details

Part number:

1N5392G

Manufacturer:

TAITRON

File Size:

123.92 KB

Description:

1.5a glass passivated rectifiers.
