1N5393G, 1N5391G 1.5A Glass Passivated Rectifiers

1N5393G Description

1.5A Glass Passivated Rectifiers 1N5391G * 1N5399G 1.5A Glass Passivated Rectifiers .
1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G Unit Conditions VRRM VRMS VDC IF(AV) Maximum Repetitive Peak Reverse Voltage Maximum RMS Vo.

1N5393G Features

* Glass passivated chip junction
* Low forward voltage drop
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260°C/10 seconds /.0375" (9.5mm) lead length, 5lbs (2.3kg) tension
* RoHS compliance Mech

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5393G, 1N5391G. Please refer to the document for exact specifications by model.

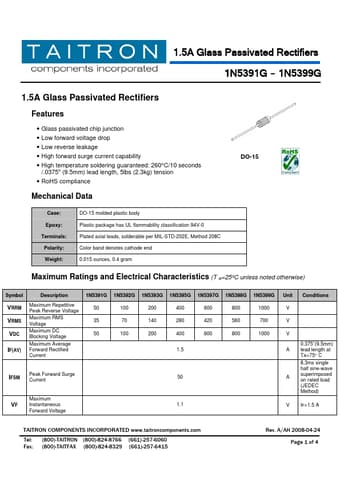

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5393G, 1N5391G
Manufacturer
TAITRON
File Size
123.92 KB
Datasheet
1N5391G-TAITRON.pdf
Description
1.5A Glass Passivated Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N5393G, 1N5391G.
Please refer to the document for exact specifications by model.
