1N5920B

1.5W Zener Diodes

1N5920B Features

* Complete voltage range 3.3V to 240V

* High peak reverse power dissipation

* High reliability

* Low leakage current

* RoHS Compliant 1.5W Zener Diodes 1N5913B - 1N5957B DO-41 Mechanical Data Case: Terminals: Epoxy: Polarity: Weight: DO-41, Molded plastic over passivated junc

1N5920B General Description

Value PD DC Power Dissipation at TL=75°C 1.5 VF Max. Forward Voltage at IF=200mA 1.5 Rthj-a Max. Thermal Resistance Junction to Ambient Air 130 TJ, TSTG Operating Junction and Storage Temperature Range -55 to +175 Unit Conditions W Note 1 V K/W Note 2 °C Note: 1. TL=Lead temperature at 3/.

1N5920B Datasheet (185.54 KB)

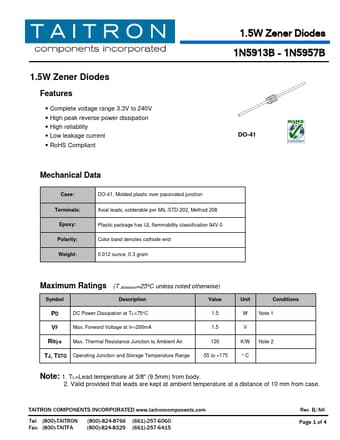

Preview of 1N5920B PDF

Datasheet Details

Part number:

1N5920B

Manufacturer:

TAITRON

File Size:

185.54 KB

Description:

1.5w zener diodes.
