2EZ10B, 2EZ6.8B Datasheet - TAITRON

2EZ10B 2W Zener Diodes

Peak Pulse Power Dissipation on TL=50°C Derate above 50°C Peak Forward Surge Current TJ,TSTG Operating Junction and Storage Temperature Range Note: Mounted on 5.0mm² (.013mm thick) land areas. Value 2 15 -55 to 150 Unit Conditions W Note 8.3ms single half sine- A wave superimposed on rated .

2EZ10B Features

* Low profile package

* Built-in strain relief

* Low inductance

* Complete voltage range 6.8 to 51V

* High temperature soldering guaranteed: 260°C/10 seconds at terminals

* RoHS compliant DO-15 Mechanical Data Case: Epoxy: Terminals: Polarity: Weigh

2EZ6.8B-TAITRON.pdf

This datasheet PDF includes multiple part numbers: 2EZ10B, 2EZ6.8B. Please refer to the document for exact specifications by model.

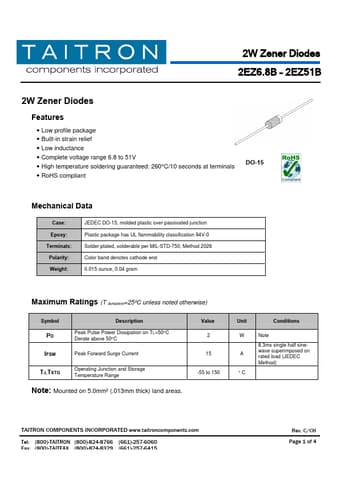

2EZ10B Datasheet Preview Page 2 2EZ10B Datasheet Preview Page 3

Datasheet Details

Part number:

2EZ10B, 2EZ6.8B

Manufacturer:

TAITRON

File Size:

179.22 KB

Description:

2w zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 2EZ10B, 2EZ6.8B.
Please refer to the document for exact specifications by model.
