2EZ15B Datasheet - TAITRON

2W Zener Diodes

2EZ15B Features

* Low profile package

* Built-in strain relief

* Low inductance

* Complete voltage range 6.8 to 51V

* High temperature soldering guaranteed: 260°C/10 seconds at terminals

* RoHS compliant DO-15 Mechanical Data Case: Epoxy: Terminals: Polarity: Weigh

2EZ15B General Description

Peak Pulse Power Dissipation on TL=50°C Derate above 50°C Peak Forward Surge Current TJ,TSTG Operating Junction and Storage Temperature Range Note: Mounted on 5.0mm² (.013mm thick) land areas. Value 2 15 -55 to 150 Unit Conditions W Note 8.3ms single half sine- A wave superimposed on rated .

2EZ15B Datasheet (179.22 KB)

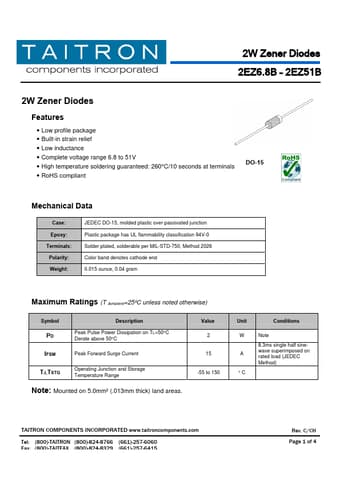

2EZ15B Datasheet Preview — Preview of 2EZ15B PDF

Datasheet Details

Part number:

2EZ15B

Manufacturer:

TAITRON

File Size:

179.22 KB

Description:

2w zener diodes.
