* Voltage Range: 6.2V to 330V
* Low leakage
* Low inductance
* High peak reverse power disspation
* Glass passivated junction
* Build-in strain relief DO-15 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Metho
2EZ150
DC COMPONENTS
38.08 KB
Glass passivated junction zener diodes.
DC COMPONENTS CO., LTD.
R RECTIFIER SPECIALISTS

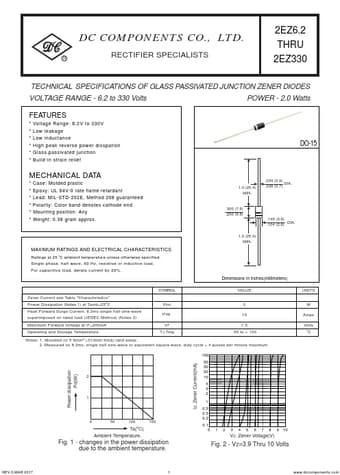

2EZ6.2 THRU 2EZ330
TECHNICAL SPECIFICATIONS OF GLASS PASSIVATED JUNCTION ZENER DIODES
VOLTAGE RANGE.
