Part number:
2EZ15
Manufacturer:
UPM
File Size:
1.10 MB
Description:

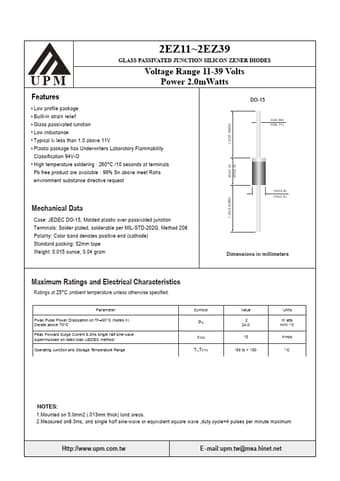

Glass passivated junction silicon zener diodes.
* Low profile package
* Built-in strain relief
* Glass passivated iunction
* Low inductance
* Typical ID less than 1.0 above 11V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* High temperature soldering : 260°C /10 seconds at terminals P
2EZ15
UPM
1.10 MB
Glass passivated junction silicon zener diodes.
